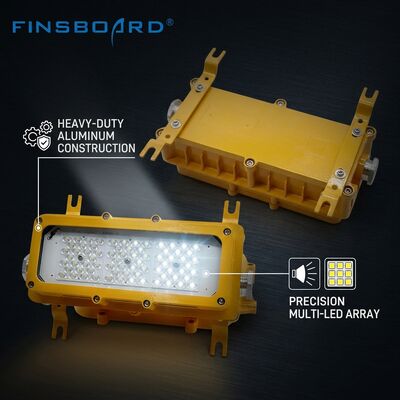

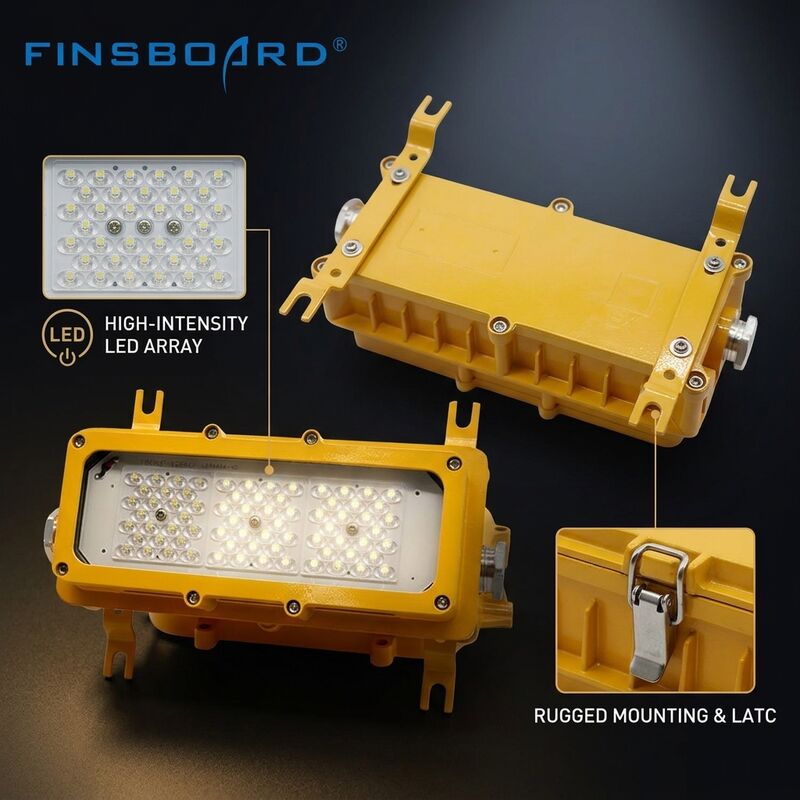

50000H Long-Life 300W LED Explosion Proof Light 30 60 90 Beam LUMILEDS LM-80 ATEX IIb T6 IP65 Hazardous Area Fixture
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | RFEPL |
| Sertifikasi: | CE, ROHS, CCC, ATEX |
| Nomor model: | RFEPL8280-300W-MB |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 buah |
|---|---|
| Harga: | USD 309-599/Piece |
| Kemasan rincian: | K=K Karton Ekspor dengan Perlindungan Bagian Dalam Busa EPE |
| Waktu pengiriman: | 15-25 hari kerja |
| Syarat-syarat pembayaran: | T/T, L/C, Western Union |
| Menyediakan kemampuan: | 5000 buah per bulan |
|
Informasi Detail |
|||
| Kekuatan: | 300W | Kemanjuran bercahaya: | 100-120 lm/w |
|---|---|---|---|
| Merek Chip LED: | Luminil | Sertifikasi LED: | LM-80 |
| Tegangan Masukan: | AC100-277V | Faktor Daya: | ≥0,95 |
| Sertifikasi: | CE, ROHS, CCC, ATEX | Standar Bukti Ledakan: | Contoh db mb IIb T6 |
| Perlindungan Masuknya: | IP65 | Perlindungan Cuaca: | WF2 |
| Perlindungan lonjakan arus: | 6KV | Indeks Rendering Warna: | CRI ≥80 |
| Bahan perumahan: | Aluminium + Kaca Tempered | Opsi sudut balok: | 30°/60°/90° (Dapat Dipilih) |
| Spesifikasi kabel: | 1.0mm² | Permukaan Selesai: | Lukisan Kuning/Abu-abu |
| Rated Lifespan: | 50.000 Jam (L90) | Suhu Operasional: | -40°C hingga +60°C |
| Kelembaban Pengoperasian: | 10% hingga 90% RH | ||
| Menyoroti: | 300W LED explosion proof light,ATEX IIb hazardous area fixture,LUMILEDS LM-80 explosion proof lighting |
||
Deskripsi Produk
50000H Long-Life 300W LED Explosion Proof Light
The RFEPL8280-300W-MB redefines long-term value in hazardous area illumination by combining an extraordinary 50,000-hour L90 rated service life with a versatile multi-beam optical system. This advanced fixture adapts to diverse installation geometries while maintaining exceptional performance in demanding environments.
Key Advantages: LUMILEDS LM-80 certified LED chips operated below maximum rating, advanced passive thermal management, and three precisely engineered beam angle options (30°, 60°, 90°) for optimal coverage patterns.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | RFEPL8280-300W-MB |
| Rated Power | 300W |
| Luminous Efficacy | 100-120 LM/W |
| LED Chip Brand | LUMILEDS (LM-80 Certified) |
| Lumen Maintenance | L90 @ 50,000 Hours (TM-21 Projected) |
| Input Voltage | AC100-277V, 50/60Hz |
| Power Factor | ≥0.95 |
| Color Rendering Index | CRI ≥80 |
| Beam Angle Options | 30° (Narrow) / 60° (Medium) / 90° (Wide) |
| Explosion Proof Standard | Ex db mb IIb T6 |
| Ingress Protection | IP65 |
| Housing Material | Die-Cast Aluminum + Tempered Glass |
| Operating Temperature | -40°C to +60°C |
| Certifications | CE, ROHS, CCC, ATEX |
Industrial Applications
This explosion-proof lighting solution is engineered for demanding hazardous area applications where reliability, longevity, and flexible beam control deliver maximum operational value.
- Refinery & Petrochemical Complexes: Standardized platform covering multiple area types with appropriate beam optics
- Mining Operations: 50,000-hour lifespan reduces costly production shutdowns for maintenance
- Pharmaceutical & Chemical Manufacturing: CRI 80+ color rendering for quality control inspection areas
- Food Processing Plants: Multi-beam flexibility adapts to changing equipment layouts
- Emergency Egress Lighting: Reliable illumination meeting life-safety regulatory requirements
Quality Assurance & Support
Each unit undergoes comprehensive quality control including LM-79 photometric testing and individual beam pattern verification. Products are packed in export-grade protective packaging with clear labeling.
Warranty: Comprehensive 3-year coverage for complete luminaire including LED modules, driver, and optical components.
Engineering Support: Complimentary lighting design services including photometric calculations and layout recommendations to meet OSHA, IEC, and local regulatory requirements.
