600W Explosion Proof LED Flood Light ATEX Narrow Beam 60° Long-Range Tower Chimney 72000lm IP66 Die-Cast Aluminum ADC12
Detail produk:
| Tempat asal: | Guangdong, Tiongkok |
| Nama merek: | Fins board, BOCAQ |
| Sertifikasi: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Nomor model: | EPFL-600W-NB60 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 10 buah |
|---|---|
| Harga: | Bisa dinegosiasikan |
| Kemasan rincian: | Paket kotak + gelembung atau disesuaikan |
| Waktu pengiriman: | 10-15 hari atau konfirmasi |
| Syarat-syarat pembayaran: | T/T, Western Union |
| Menyediakan kemampuan: | 5000 buah/bulan |
|
Informasi Detail |
|||
| Kekuatan: | 600W | Fluks Bercahaya: | 72000lm |
|---|---|---|---|
| Kemanjuran: | 120lm/w | Suhu Warna: | 5000K (Cool White) |
| Sudut Balok: | 60° | Tegangan masukan: | AC 100-277V 50/60Hz |
| Chip yang dipimpin: | Bridgelux SMD 3030 | Peringkat IP: | IP66 |
| Bahan perumahan: | Die-Cast Aluminium ADC12 dengan Reflektor Efisiensi Tinggi | Bahan Lensa: | Kaca Tempered 5mm |
| Suhu Operasional: | -40°C hingga +60°C | Sertifikasi: | ATEX II 2G Ex d IIC T6 Gb |
| Jangka hidup: | ≥50,000 Jam L70 | Jaminan: | 5 tahun |
| Menyoroti: | Narrow Beam Explosion Proof,600W ATEX Long-Range Light,60° Hazardous Area Floodlight |
||
Deskripsi Produk

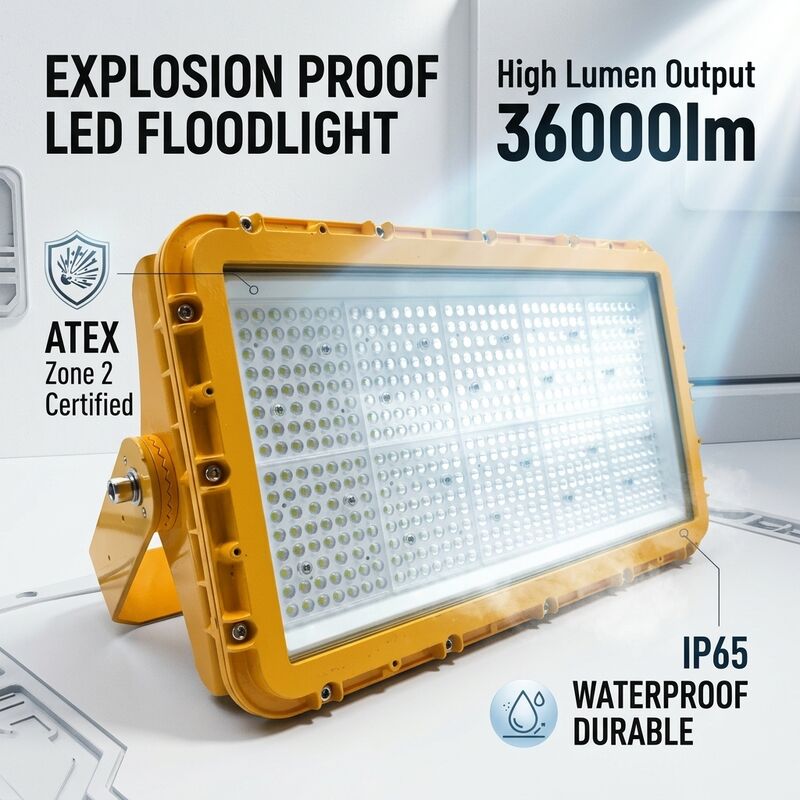

600W Explosion Proof LED Flood Light ATEX Narrow Beam 60°
The EPFL-600W-NB60 is a 600W explosion proof LED flood light engineered for demanding industrial environments. This narrow 60° floodlight provides exceptional illumination while maintaining the strictest safety standards for hazardous locations.
Key Features
- 600W High Power Output - 72000lm total luminous flux with 120lm/W efficacy, replacing traditional HID equivalents with significant energy savings
- ATEX Certified - ATEX II 2G Ex d IIC T6 Gb for hazardous gas and dust atmospheres
- Robust Die-Cast Aluminum ADC12 Housing - High-efficiency reflector with corrosion-resistant coating for long-term durability
- IP66 Protection - Fully sealed against environmental ingress, suitable for the harshest industrial environments
- 5mm Tempered Glass Lens - High-transmittance safety glass with impact resistance rating
- Bridgelux SMD 3030 LEDs - Premium LED chips delivering stable 5000K (Cool White) light with excellent uniformity
- 60° Beam Angle - Precision narrow beam for long-distance projection and high-mast applications
- Universal Voltage Input - AC 100-277V 50/60Hz compatible with global electrical systems
- Multiple Mounting Options - Adjustable bracket, pole mount, and ceiling mount configurations included
- 5-Year Warranty - Backed by ≥50,000 hours L70 lifespan testing
- Long-Range Illumination - Effective illumination up to 80 meters, ideal for high mast towers, chimney stacks, and remote tank farm perimeters
Applications
- High mast towers, chimney stacks, storage tank farms, and long-distance area illumination
- Oil refineries and petrochemical processing plants
- Offshore drilling platforms and FPSO vessels
- Chemical storage warehouses and mixing facilities
- Gas compressor stations and LNG terminals
- Paint spray booths and solvent handling areas
Technical Specifications
| Model Number | EPFL-600W-NB60 |
|---|---|
| Power Consumption | 600W |
| Luminous Flux | 72000lm |
| Efficacy | 120lm/W |
| Color Temperature | 5000K (Cool White) |
| Beam Angle | 60° |
| Input Voltage | AC 100-277V 50/60Hz |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP66 |
| Housing Material | Die-Cast Aluminum ADC12 with High-Efficiency Reflector |
| Lens | Tempered Glass 5mm |
| Operating Temperature | -40°C to +60°C |
| Mounting | Adjustable Bracket / Pole Mount / Ceiling Mount |
| Certification | ATEX II 2G Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
ECER delivers explosion proof LED flood lights that combine cutting-edge LED technology with rigorous safety engineering. Each unit undergoes 100% factory testing including pressure testing of the explosion-proof enclosure and photometric verification.
For bulk orders, OEM/ODM customization, or technical inquiries, please contact our sales team.
For bulk orders, OEM/ODM customization, or technical inquiries, please contact our sales team.
