Lampu High Bay Led 100W Proof Explosion dengan Rating IP66 dan Lensa Kaca Tempered untuk Daerah Berbahaya

Detail produk:

Tempat asal: Daratan China
Nama merek: Fins board, BOCAQ
Sertifikasi: CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order: 10 pcs
Harga: Bisa dinegosiasikan
Kemasan rincian: Paket kotak + gelembung atau disesuaikan
Waktu pengiriman: 25-30days atau konfirmasi
Syarat-syarat pembayaran: T/T, Western Union
Menyediakan kemampuan: 5000pcs/bulan
Harga terbaik Kontak

Informasi Detail
Bahan Lensa: Kaca tempered Sumber Cahaya: Dipimpin
Suhu Operasional: -40 ° C hingga 60 ° C. Menggunakan: pabrik
Bahan Perumahan: Paduan aluminium Peringkat IP: IP66
Suhu Warna: 5000K Kelas anti korosi: WF2
Kri: > 80 Opsional: Penutup PC / Kaca Kuat
Ketinggian Instalasi: 4m ～ 8m
Menyoroti:

Lampu tahan led 100w

,

10000Lm Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led

,

100w led explosion proof lamps

Deskripsi Produk

100W Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led Led
Lampu Led 100W yang tahan ledakan - 10.000LM OEM
Sifat Struktural
  • Dirancang dan diproduksi sesuai dengan persyaratan tahan ledakan untuk operasi yang aman dan dapat diandalkan di lingkungan berbahaya
  • Rumah die-cast paduan aluminium berkualitas tinggi dengan penyemprotan dan penyegelan elektrostatik bertekanan tinggi untuk ketahanan korosi WF2
  • Konstruksi kaca yang dikeraskan lulus tes ketahanan terhadap dampak dan panas yang ketat
  • Cincin penyegelan karet silikon memberikan ketahanan suhu tinggi dan penuaan yang sangat baik IP65
  • Multiple LED lamp beads with nano-reflective cups for high luminous efficiency and extended life
  • Perekat baja tahan karat memastikan ketahanan korosi dan daya tahan
  • Berbagai pilihan pemasangan: jenis langit-langit, batang gantung, dinding, pagar, dan batang melengkung
  • Perangkat darurat opsional untuk pencahayaan cadangan otomatis selama pemadaman listrik
  • Kaca yang dikeraskan tersedia dalam pilihan glazed atau transparan
Lingkup Aplikasi
  • Cocok untuk campuran gas peledak dalam kelompok suhu T1 sampai T6
  • Daerah berbahaya dengan campuran gas peledak: Zona 1 dan Zona 2
  • Lingkungan debu bahan bakar: Zona 21 dan Zona 22
  • Kompatibel dengan campuran gas peledak kelas IIA, IIB, dan IIC
  • Ideal untuk pencahayaan tetap di pabrik kimia, gudang, pembangkit listrik, bengkel cat, ruang boiler, pompa bensin, dan peternakan tangki
Spesifikasi Teknis
Jenis Sumber Cahaya Sumber Cahaya LED Teknologi Sumber Cahaya Jenis Patch SMD
Peringkat kandang IP65 Kelas Anti Korosi Shell WF2
Faktor Daya ≥ 0.95 Efisiensi Tenaga ≥ 0.88
Spesifikasi Inlet G3/4° ((φ6~φ12mm) Suhu Warna 5500K ¢ 6500K
Dimensi Dia260*125mm / Dia300*130mm Berat lampu 3.9kg / 5.8Kg
Tinggi instalasi yang direkomendasikan 4m8m Jarak instalasi yang disarankan 3m6m
Tanda tahan ledakan: Exde IICT6 Gb/Ex tD A21 IP65 T80°C
Metode pemasangan: dipasang di langit-langit, dipasang di balok, dipasang di dinding (30°/90°), dipasang pagar, dipasang flange
Gambar Produk
Lampu High Bay Led 100W Proof Explosion dengan Rating IP66 dan Lensa Kaca Tempered untuk Daerah Berbahaya 0

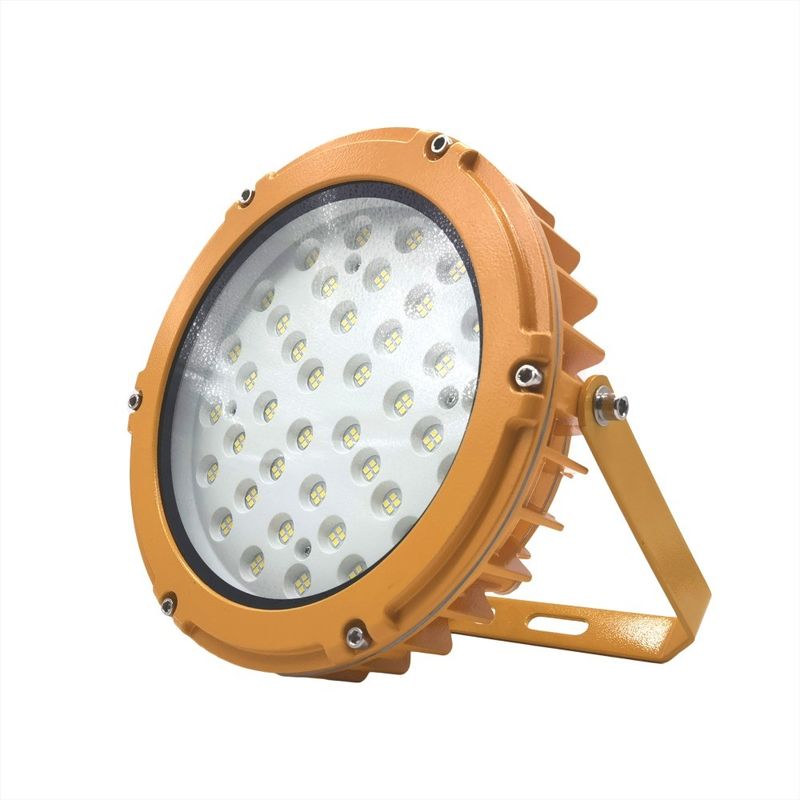

Pemandangan depan
Lampu High Bay Led 100W Proof Explosion dengan Rating IP66 dan Lensa Kaca Tempered untuk Daerah Berbahaya 1
Diagram Teknis
Lampu High Bay Led 100W Proof Explosion dengan Rating IP66 dan Lensa Kaca Tempered untuk Daerah Berbahaya 2
Contoh Instalasi
